3D bioprinting is transforming medicine by creating patient-specific tissues and models using bioinks and advanced printing methods. This technology is already being used to test drugs, study diseases, and develop personalized treatments. Here's what you need to know:
- How It Works: Combines bioinks with 3D printing to build living tissues layer by layer.
- Key Benefits: Improves drug testing accuracy, models diseases more reliably than animal testing, and enables personalized therapies.
- Current Applications: Includes skin, neural tissues, and miniature organ models for research and drug development.
- Challenges: Issues like blood vessel formation and cell survival are being addressed with new techniques like AI and 4D printing.
- Future Potential: Could solve organ shortages and revolutionize regenerative medicine.
| Printing Method | Resolution | Cell Viability | Best Use |
|---|---|---|---|
| Extrusion-Based | 100–500 µm | Moderate | Large tissue structures |
| Inkjet-Based | 20+ nL | >85% | High-precision cell placement |
| Light-Assisted | 10–50 µm | >95% | Complex microstructures |
3D bioprinting is advancing quickly, with the market projected to grow from $2.08 billion in 2025 to $5.19 billion by 2030. Expect it to play a major role in personalized medicine, drug development, and even organ transplants.
Key Technologies in 3D Bioprinting
3 Main Printing Methods
3D bioprinting employs three primary methods, each with its own strengths.
Extrusion-based printing uses mechanical or pneumatic systems to deposit continuous bioink filaments. This method is ideal for creating larger tissue structures, though its resolution is lower, ranging between 100 and 500 micrometers [1].
Inkjet-based printing works by dispensing tiny droplets, as small as 20 nanoliters, and achieves cell viability rates exceeding 85%. For example, Faulkner-Jones and colleagues successfully used this technique to print 3D ring structures containing human iPSC-derived hepatocyte-like cells embedded in alginate hydrogels [1].
Light-assisted printing offers exceptional resolution (10–50 micrometers) and cell viability rates above 95%. While the equipment can be costly, its speed and precision make it particularly effective for creating intricate tissue constructs [1].
| Printing Method | Resolution | Cell Viability | Best Use Case |
|---|---|---|---|
| Extrusion | 100–500 µm | Moderate | Large tissue constructs |
| Inkjet | 20+ nL droplets | >85% | High-precision cell placement |
| Light-assisted | 10–50 µm | >95% | Complex microstructures |
These methods, combined with advancements in bioinks, contribute to improving tissue structure and functionality.
Bioink Types and Functions
Bioinks are specially designed mixtures of cells and biomaterials that replicate the extracellular matrix, creating an environment conducive to cell growth and tissue development [3]. The success of 3D bioprinting relies on pairing the right bioink formulations with the appropriate printing technology [1].
Modern bioinks have viscosity ranges from 30 to 6 × 10⁷ millipascal-seconds, which allows for precise control during printing [4]. Recent innovations have introduced components like:
- Carbon-based nanomaterials
- Clay nanomaterials
- Ceramics
- Specialized fibers
- Growth factors
These components enable the development of hybrid hydrogels that better mimic natural tissue environments [4].
Using Patient Cells in Models
Integrating patient-derived cells with advanced printing methods and optimized bioinks is driving progress in personalized tissue modeling. Studies report a success rate of about 87% in creating models tailored to individual patients [5]. For instance, in pancreatic cancer research, 3D-printed models maintained over 80% cell viability for two weeks while preserving up to 94.44% of the tumor's original genetic profile [5].
This high level of accuracy supports precise drug sensitivity testing, personalized treatment strategies, and realistic disease modeling. By combining patient-specific cells with cutting-edge bioprinting techniques, researchers are developing tools that closely reflect individual patient physiology, advancing both research and personalized medicine.
Medical Research Applications
Cancer Model Development
3D bioprinting is making strides in creating tumor models that replicate the microenvironment found in the human body, offering better insights into how drugs might perform. With clinical trial success rates falling below 10% [6], these advancements are crucial. For instance, recent progress in glioblastoma (GBM) research has led to tri-regional models made from patient-derived cells and engineered extracellular matrices. These models reveal that stiffer constructs resist temozolomide (TMZ), mimicking real patient responses [2]. Building on this, bioprinting is now being used to develop more sophisticated skin, neural, and organoid models.
Skin and Neural Tissue Creation
In skin bioprinting, several companies are pushing the boundaries of what's possible:
| Company | Achievement | Impact |
|---|---|---|
| L'Oreal & University of Oregon | Developed melt electrowriting method | Reduced skin reconstruction time to 18 days |
| BASF Care Creations & CTIBiotech | Produced the first 3D bioprinted skin with immune macrophages | Improved the study of skincare bio-actives |
| Rokit Healthcare | Created a diabetic foot ulcer platform | Aims to lower amputation rates |
CTIBiotech researchers, using CELLINK's BIO X 3D bioprinter, have also developed full-thickness skin models to examine sebum production and acne [8]. Meanwhile, advancements in neural tissue bioprinting are enabling the creation of functional neural models, which are essential for studying neurological disorders [7].
Miniature Organ Models
The development of miniature organ models is transforming drug testing and disease research. With pharmaceutical companies investing $133 billion in R&D in 2021 - a 44% increase from 2016 [9] - these models are becoming indispensable. Examples include kidney tubular organoids derived from human pluripotent stem cells, immune-enhanced tumor organoids for testing immunotherapies, and the integration of CRISPR/Cas9 for precise disease modeling. These advancements are helping to address the staggering 95% failure rate in clinical trials [9].
"The field of pharmaceutical research can significantly improve by using 3D bioprinted models for testing drugs and disease modeling. This approach brings ethical advantages and improves accuracy." - Divya Mallya et al. [9]
Current Limitations and Solutions
Blood Vessel Formation Issues
For cells to thrive, they need to be within 200 μm of blood vessels to access essential nutrients and oxygen [11]. Without sufficient vascularization, tissue size and functionality are severely limited, often leading to the death of interior cells due to deprivation [10].
Researchers are actively tackling this problem. At the University of California, scientists developed a bioink based on human tropoelastin to create vascularized cardiac tissues, achieving strong endothelial barrier functionality [10]. Meanwhile, studies at Tongji University revealed that vascular cell spheroids - clusters of cells - are far more effective than individual cells in forming vascular networks within 3D-printed myocardial tissues [10].
| Vascularization Strategy | Advantage | Challenge |
|---|---|---|
| Controlled Angiogenic Factors | Encourages natural vessel growth | Hard to control vessel formation patterns |
| Direct Vascular Scaffolding | Provides immediate channels | Achieving anti-thrombotic properties is complex |
| Cell Spheroid Approach | Forms better vessel networks | Requires precise timing and conditions |
Despite these challenges, researchers are exploring new strategies to improve the vascularization and functionality of bioprinted tissues.
New Methods: 4D Printing and AI
Innovative technologies like 4D printing and AI are now pushing the boundaries of bioprinting. First introduced to cell bioprinting in 2017 [13], 4D printing uses materials that respond to environmental changes over time [12]. This approach is particularly effective for creating intricate structures like curved or tubular forms through self-rolling bilayers [13].
AI is also playing a transformative role. Mohammed Albanna's team developed a mobile skin bioprinting system that uses AI-powered structured-light scanning to identify wound areas and apply cell-laden hydrogels with precision. Similarly, Zhijie Zhu's research demonstrated real-time, closed-loop AI printing that adjusts toolpaths dynamically on moving surfaces, enabling precise tissue applications [12].
Cell Survival Improvements
Advancements in cell survival techniques are also making waves. The Wyss Institute and Harvard SEAS introduced the SWIFT method, which packs stem-cell-derived aggregates into dense matrices embedded with vascular networks. Its upgraded version, co-SWIFT, incorporates specialized endothelial cell printing, better mimicking natural vascular barriers while maintaining tissue functionality for up to six weeks [14].
Other breakthroughs include research by Boularaoui et al. (March 2022), which showed that short-term shear stress preconditioning improves cell viability by 7.8% in nozzle systems and 6.6% in needle systems compared to non-conditioned cells [15].
At Penn State University, Ibrahim T. Ozbolat developed the HITS-Bio system, a four-by-four nozzle array capable of maintaining over 90% cell viability while operating at speeds ten times faster than traditional methods [16].
"This technique is a significant advancement in rapid bioprinting of spheroids. It enables the bioprinting of tissues in a high-throughput manner at a speed much faster than existing techniques with high cell viability."
- Ibrahim T. Ozbolat [16]
sbb-itb-4f17e23

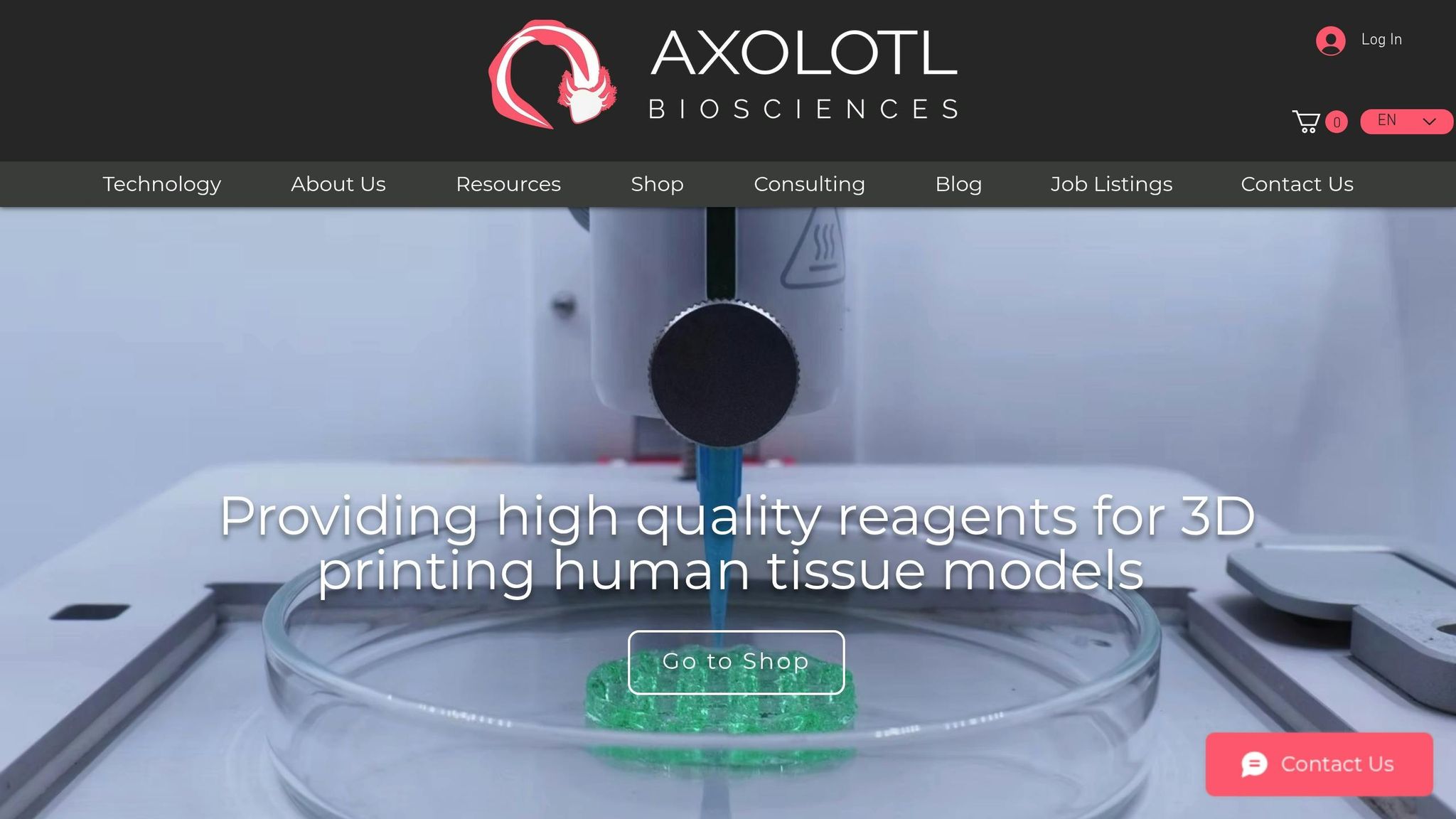

The Future of Tissue Engineering: 3D Bioprinting Insights from Axolotl Biosciences | 3D Interviews
Future Impact on Medicine
The possibilities for 3D bioprinting in personalized medicine are immense, reflecting the growing clinical potential of this groundbreaking technology.
One of the most promising applications lies in addressing the organ donation crisis. By creating patient-specific organs and tissues using an individual's own cells, 3D bioprinting could drastically cut transplant waiting times, improve compatibility, and significantly lower the risk of organ rejection [18].
Here’s a closer look at key areas where 3D bioprinting is making strides:
| Application Area | Current Challenge | Bioprinting Solution | Expected Impact |
|---|---|---|---|
| Organ Transplants | Donor shortage | Patient-specific organs | Shorter waiting times |
| Drug Development | High failure rates | Accurate tissue models | Faster, more reliable testing |
| Cancer Treatment | Generic approaches | Personalized tumor models | Better therapy targeting |
| Regenerative Medicine | Limited tissue options | Custom tissue constructs | Improved healing outcomes |
Beyond these applications, artificial intelligence and automation are playing a crucial role in advancing the technology. AI enhances the precision of tissue construction, while automation simplifies production processes, making them faster and more reliable [18]. Research has shown that 3D bioprinted tissue models can closely replicate the physiological environment of human tissues, preserving vital cell-to-cell and cell-to-matrix interactions. This leads to more accurate and predictive preclinical data [20].
The market for 3D bioprinting is expected to grow rapidly, with projections estimating an increase from $2.08 billion in 2025 to over $5.19 billion by 2030. Meanwhile, the segment for bioprinted human tissue alone is anticipated to reach $3.53 billion by 2035 [17][18][19]. This growth is fueling collaborations between research institutions and industry partners, accelerating the shift from laboratory research to clinical applications [18].
In drug development and testing, the benefits of 3D bioprinting are particularly evident. By offering tissue models that accurately mimic natural cellular environments, pharmaceutical companies can conduct more reliable preclinical trials. This not only enhances testing accuracy but could also lower development costs and increase the chances of success [20].
FAQs
How does 3D bioprinting overcome challenges in forming blood vessels and keeping cells alive in tissue models?
3D bioprinting tackles one of the biggest hurdles in tissue engineering: forming blood vessels and ensuring cells can survive. By precisely crafting vascular networks that closely resemble natural tissue, this technology ensures the delivery of nutrients and oxygen, the removal of waste, and the overall health of cells - crucial for larger tissue constructs.
Using a blend of living cells, growth factors, and biomaterials, bioprinting creates an environment that supports tissue functionality. Advances in bioinks and printing methods are pushing the boundaries, enabling the creation of intricate vascular systems. This progress makes bioprinted tissues increasingly suitable for applications such as regenerative medicine and drug testing.
Without proper vascularization, tissue constructs are limited in size and complexity because they can't receive sufficient nutrients or expel waste effectively. Bioprinting is breaking through these limitations, offering a path to more realistic and functional tissue models for medical use.
How does artificial intelligence enhance the potential of 3D bioprinting in medical applications?
Artificial intelligence (AI) is transforming the field of 3D bioprinting by simplifying design workflows and boosting precision. With its ability to model intricate biological structures with remarkable detail, AI can automate adjustments to critical parameters and refine material choices, leading to more accurate and reliable tissue models.
AI also speeds up the printing process and makes it possible to create highly personalized tissue models. This opens up new opportunities in medicine, offering advanced treatments and tailored healthcare solutions designed to meet the unique needs of individual patients.
How can 3D bioprinting transform organ transplantation and address the organ donor shortage?
3D bioprinting holds the promise of transforming organ transplantation by making it possible to create customized, patient-specific tissues and organs. By using a patient’s own cells, this technology can drastically lower the chances of organ rejection and remove the dependence on donor organs altogether. The result? Shorter waiting times and improved outcomes for patients who desperately need life-saving transplants.
As the technology continues to develop, it’s poised to make organ production more efficient and scalable. This could reshape the entire organ transplantation system, alleviating the pressure on donor networks and offering a practical solution to the ongoing organ shortage crisis.
